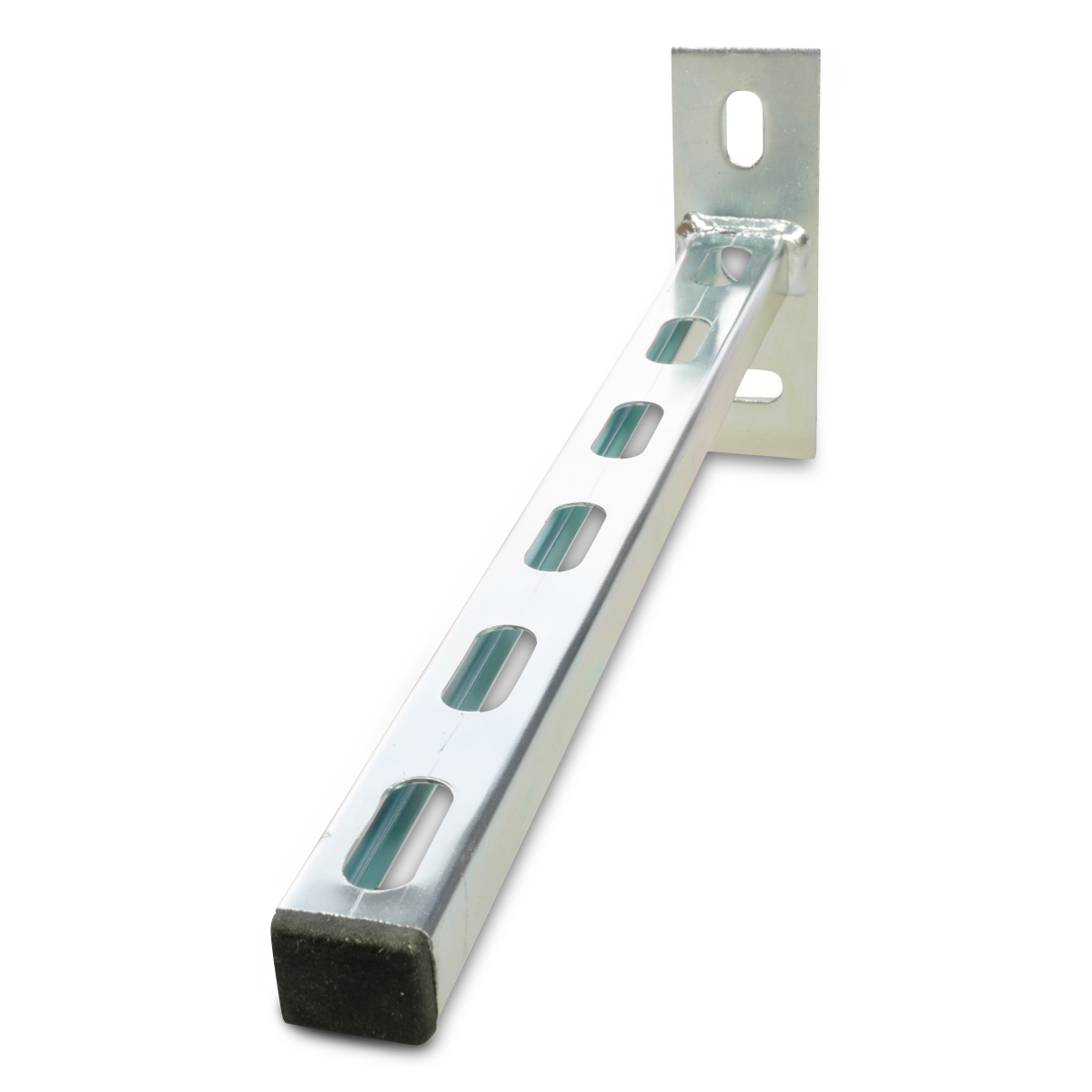

Rail bracket for mounting on the wall - made in Germany. Dimensions: Profile: 26 x 18 x 1.5 [mm] Rail slot: 12 mm Rail lip: smooth Hole pattern: 9 x 20 [mm] at 45 mm centres Matching screws: Hammerhead fastener 26/18 Threaded plate 28/15 Extensive range of mounting accessories. Other lengths, surfaces and hole patterns are available on request. &nbsp The classic from BULLFIX. The inexpensive mounting bracket. The lightweight 26/18 profile with 1.25 mm wall thickness is ideal as an installation bracket for low loads. Thanks to two slotted holes in the base plate, the cantilever bracket is very easy to align. The lightweight wall brackets in profile 26/18 with a galvanised finish are intended for indoor use or in a dry environment. Most models of our mounting brackets are also available in stainless steel. Our cantilever brackets in profile 26/18 are primarily suitable for the quick and professional fastening of, for example, water pipes or ventilation ducts in the sanitary home sector. Alternatively, the bracket can also be used as a suspension rod for suspending cable trays and mesh cable trays from the ceiling. In our shop you will find the matching hammerhead bolts and threaded plates for our cantilever arms as well as a comprehensive range of mounting accessories for creating complex structures. All BULLFIX cantilever brackets are manufactured in Germany. The Bullfix cantilever brackets generally stand out as an economically competitive alternative to brackets from other manufacturers. Examples include the brackets from the W&uumlrth-Varfix series, Walraven Rapidrail wall brackets, Fischer FCA cantilever brackets, Unistrut Cantilever Arms or the brackets from the Halfen KON series. Suitable for this: Hammerhead fastener 26/18, threaded plate 28/15 Further accessories: see category Mounting accessories and pipe clamps Other lengths, hole patterns and surfaces on request. &nbsp

Rail bracket for mounting on the wall - made in Germany. Dimensions: Profile: 36 x 36 x 2.5 [mm] Cantilever: 200 mm - 600 mm Rail slot: 18 mm Rail lip: smooth Hole pattern: 11.5 x 29.5 [mm] in 50 mm increments Matching screws: Hammer-head screws 38/17 Threaded plate 38/17 Comprehensive range of mounting accessories. Other lengths, surfaces and hole patterns are available on request. Discover BULLFIX's flagship product - our cost-effective mounting bracket. With its robust 36/36 profile and a material thickness of 2.5 mm, it is the ideal solution for the installation of light to medium-heavy loads. Installation is child's play thanks to two slotted holes in the base plate, which allow the cantilever bracket to be aligned effortlessly. Our lightweight wall brackets with a tried-and-tested 36 x 36 mm profile cross-section and galvanised surface are specially designed for indoor use or in dry environments. The majority of our mounting brackets are also available in a stainless steel version. We also offer the support brackets 36/36 as a heavy-duty bracket with diagonal brace for higher loads. The support brackets with the 36/36 profile are designed in particular for the quick and professional installation of water pipes or ventilation ducts in domestic and commercial sanitary facilities, for example. Alternatively, the support brackets can also be used to suspend cable trays and mesh cable trays from the ceiling. In our online shop, we offer matching hammerhead bolts and threaded plates for our cantilever arms as well as a wide range of mounting accessories for the realisation of complex constructions. All BULLFIX support brackets are manufactured in Germany. Compared to products from other manufacturers, BULLFIX installation brackets are an economically attractive alternative. Examples include brackets from the Würth-Varfix series, Walraven Rapidrail wall brackets, Fischer FCA cantilever brackets, Unistrut cantilever arms or brackets from the Halfen KON series. Suitable products: Hammer head screws 38/17, threaded plate 38/17 Further mounting accessories and pipe clamps can be found in the corresponding category. For individual requirements, we also offer other lengths, hole patterns and surfaces on request.

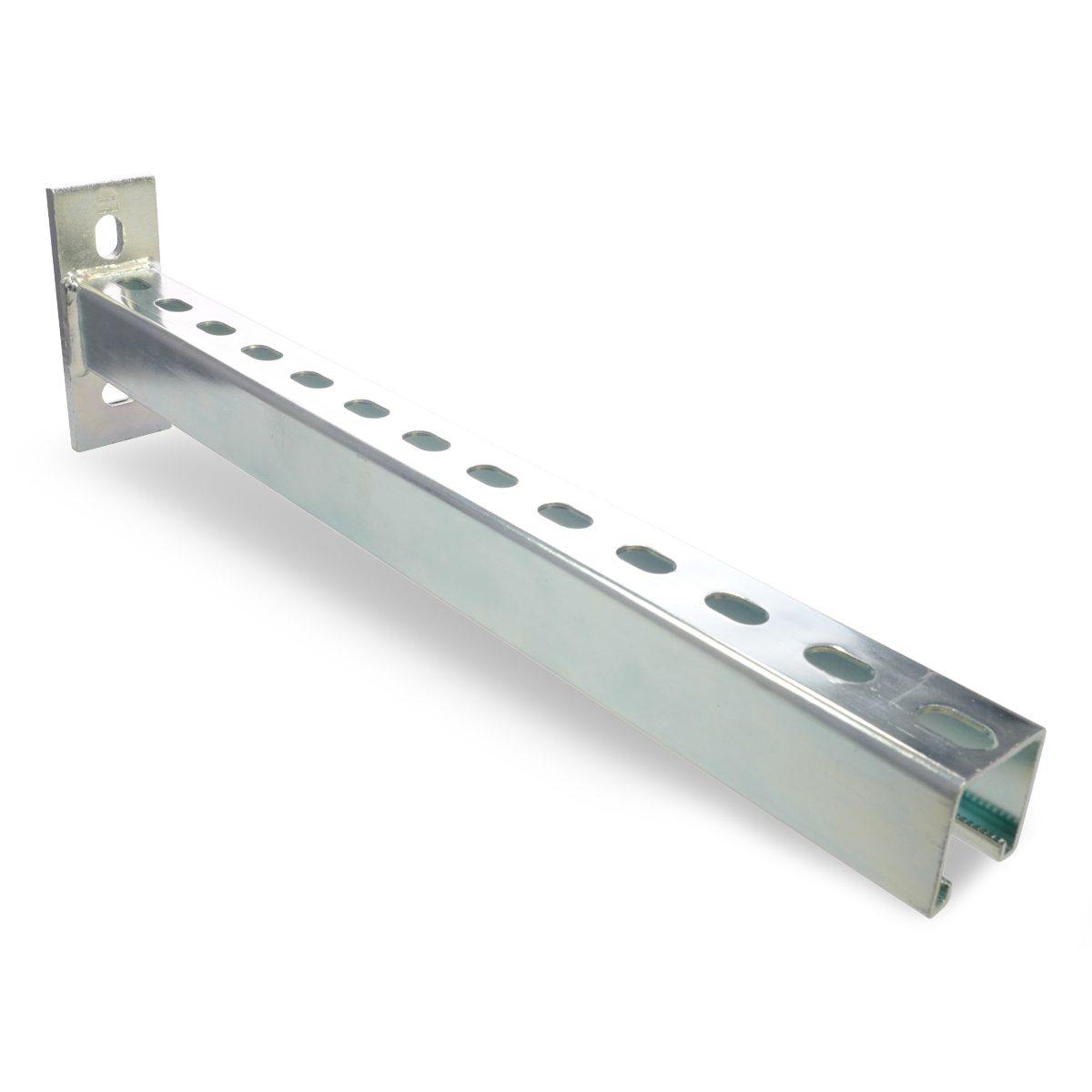

Rail bracket for mounting on the wall - made in Germany. Dimensions: Profile: 41 x 41 x 2.5 [mm] Bracket: 200 mm - 1,000 mm Rail slot: 18 mm Hole pattern: 13 x 20 [mm] at 50 mm centres Steel rail lip: fluted Stainless steel rail lip: smooth Matching screws: Hammerhead screws 41/21 Hammerhead fastener 41/41 Threaded plate 41/41 Threaded plate 41/41 with fixing aid Extensive range of mounting accessories. Other lengths, surfaces and hole patterns are available on request. &nbsp Discover the flagship of BULLFIX - our solid mounting bracket. This bracket is characterised by a stable profile measuring 41 x 41 mm and a material thickness of 2.5 mm and is the ideal choice for mounting loads in the medium range. Installation is particularly easy thanks to two elongated holes in the base plate, which allow the support bracket to be easily adjusted. Our wall brackets with the tried-and-tested 41/41 mm profile cross-section and galvanised surface have been specially developed for use indoors or in dry environments. A considerable proportion of our range of mounting brackets is also available in a stainless steel version. We also offer our support brackets in profile 41/41 as heavy-duty brackets with an additional diagonal brace for increased loads. The installation brackets with the 41 x 41 x 2.5 mm profile are specially designed for efficient and professional installation of systems such as water pipes or ventilation ducts in the domestic and industrial sanitary sector. As a further possible application, the brackets can be used as a suspension bracket for suspending cable trays and mesh cable trays as support systems on ceiling structures. In our online shop you will find a selection of suitable hammer-head bolts and threaded plates for our cantilever brackets as well as a comprehensive range of installation accessories to realise even complex construction projects. All BULLFIX cantilever brackets are produced in Germany. In direct comparison with products from other suppliers, BULLFIX cantilever brackets offer an economically favourable alternative. Comparable products include brackets from the W&uumlrth-Varfix series, Walraven Rapidrail wall brackets, Fischer FCA cantilever brackets, Unistrut cantilever arms or brackets from the Halfen KON series. &nbsp Suitable for this: Hammerhead bolts 41/22 Z, hammerhead fastener 41/41, threaded plate 41/41, threaded plate 41/41 with fixing aid. Further mounting accessories and pipe clamps can be found in the corresponding category. For individual requirements, we also offer other lengths, hole patterns and surfaces on request.

Rail bracket for mounting on the wall - made in Germany. Dimensions: Profile: 41 x 41 x 2.5 [mm] Bracket: 200 mm - 1,000 mm Rail slot: 18 mm Hole pattern: 13 x 20 [mm] at 50 mm centres Steel rail lip: fluted Stainless steel rail lip: smooth Matching screws: Hammerhead screws 41/21 Hammerhead fastener 41/41 Threaded plate 41/41 Threaded plate 41/41 with fixing aid Extensive range of mounting accessories. Other lengths, surfaces and hole patterns are available on request. The solid mounting bracket with turned back plate is characterised by a stable profile with a material thickness of 2.5 mm, making it the ideal choice for mounting medium-heavy loads. Installation is simplified by two elongated holes in the base plate, which make it easy to adjust the mounting bracket. Our wall brackets with a profile cross-section of 41/41 mm and a galvanised surface are specially designed for use in indoor or dry environments. All support brackets in the 41 series are of course also available in aluminium, which opens up additional areas of application. For increased loads, we also offer heavy-duty brackets with additional diagonal braces. The construction of our installation brackets with a profile of 41 x 41 x 2.5 mm is specially designed for the efficient and professional installation of systems such as water pipes or ventilation ducts in the domestic and industrial sanitary sector. In addition, the brackets are suitable for suspending cable trays and mesh cable trays as well as for suspending from ceiling structures. In our online shop you will find a wide selection of suitable fastening elements and an extensive range of mounting accessories to realise even the most demanding projects. All BULLFIX support brackets are manufactured in Germany and represent an economically attractive alternative to cantilever brackets from other suppliers in a direct comparison. Cantilever brackets from the W&uumlrth-Varfix, Walraven Rapidrail, Fischer FCA, Unistrut Cantilever Arm and Halfen KON series can be used as comparison products. &nbsp &nbsp Suitable for this: Hammerhead bolts 41/22 Z, hammerhead fastener 41/41, threaded plate 41/41, threaded plate 41/41 with fixing aid. Further mounting accessories and pipe clamps can be found in the corresponding category. For individual requirements, we also offer other lengths, hole patterns and surfaces on request.

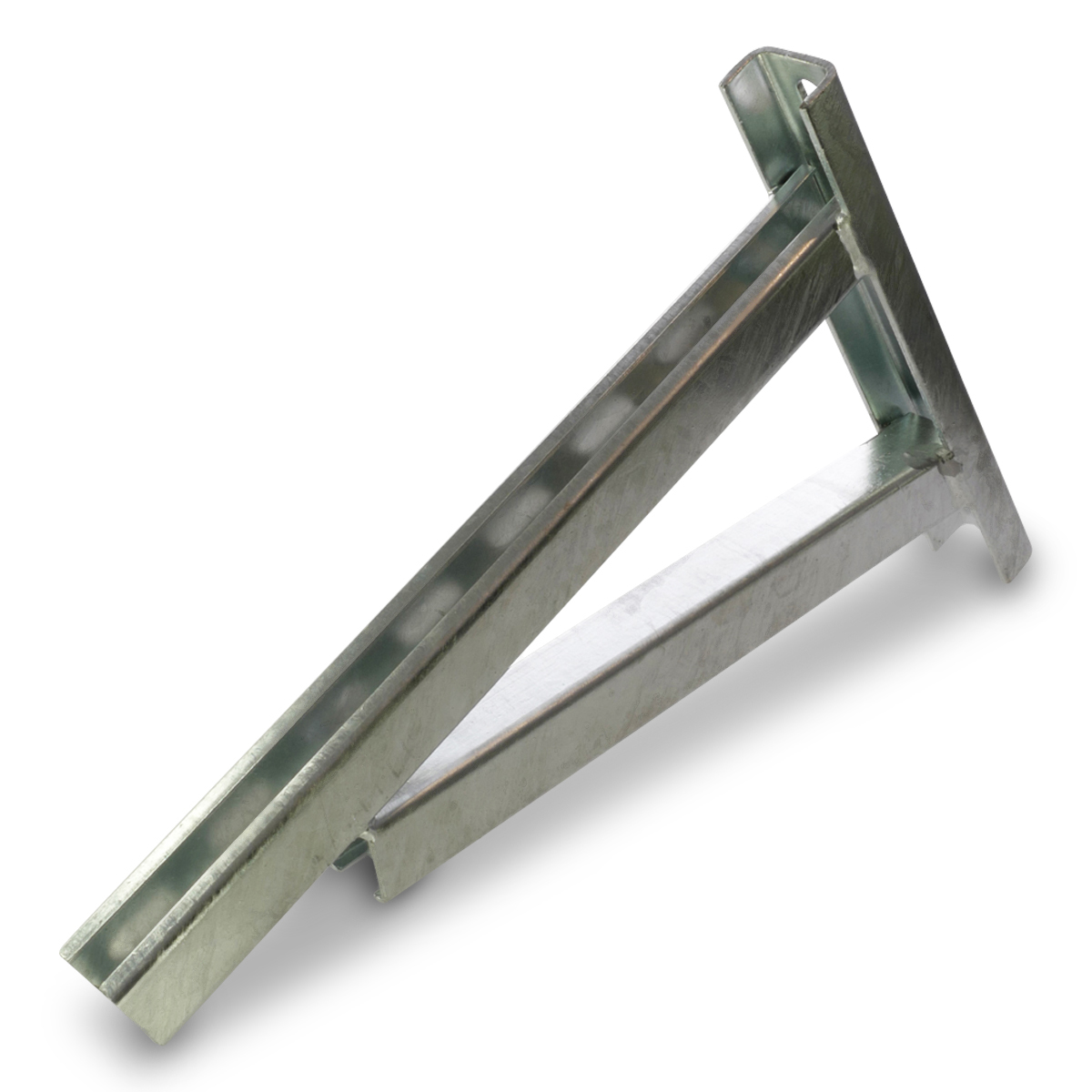

Dimensions: Profile: 36 x 36 x 2.5 [mm] Cantilever: 200 mm - 1,300 mm Rail slot: 18 mm Hole pattern: 11.5 x 29.5 [mm] at 50 mm centres Back plate height: 235 - 630 mm Matching screws: Hammer-head screws 38/17 Threaded plate 38/17 Extensive range of mounting accessories. Other lengths, surfaces and hole patterns are available on request. &nbsp The robust wall-mounted rail bracket - quality &bdquoMade in Germany&ldquo Our heavy-duty bracket in profile 36/36 with a material thickness of 2.5 mm is specially designed for demanding applications. The construction with solid U-bracket and diagonal brace can withstand loads of well over 300 kg. The mounting bracket is available in a galvanised version or in A4 stainless steel. Our hot-dip galvanised support brackets are ideal for use in damp rooms or outdoor areas. Installation is supported by two slotted holes in the base plate for easy alignment. We also offer all heavy-duty brackets in A4 stainless steel, which is required by law for special technical applications and structures - including bridge drainage systems, sewage treatment plants, chemical and pharmaceutical plants and food processing facilities. A4 stainless steel is characterised by its resistance to acids and seawater. Our heavy-duty supports are ideal for erecting load-bearing structures, such as pipework, ventilation ducts, cable trays, in bridge and building drainage or as support elements for machines and units. In combination with our optional hammerhead bolts and threaded plates, the stable profile 36/36 enables extremely secure connections. All BULLFIX support brackets are manufactured in Germany and offer an economically favourable alternative to cantilever brackets from other manufacturers. Comparable products include the Würth-Varfix heavy-duty bracket, Walraven Strut wall brackets, Fischer cantilever arm FCAM, Jordahl Pohlcon JKO 36/36 and the Halfen KON 36/2 series. In our shop you will find the matching hammerhead bolts and threaded plates for our fixing brackets as well as an extensive range of mounting accessories for complex constructions. All BULLFIX brackets are produced in Germany. &nbsp Also included in the range: Hammerhead bolts 38/17, threaded plate 38/17. Further mounting accessories and pipe clamps can be found in the corresponding category. For special requirements, we also offer customised products with different lengths, hole patterns and surface treatments on request.

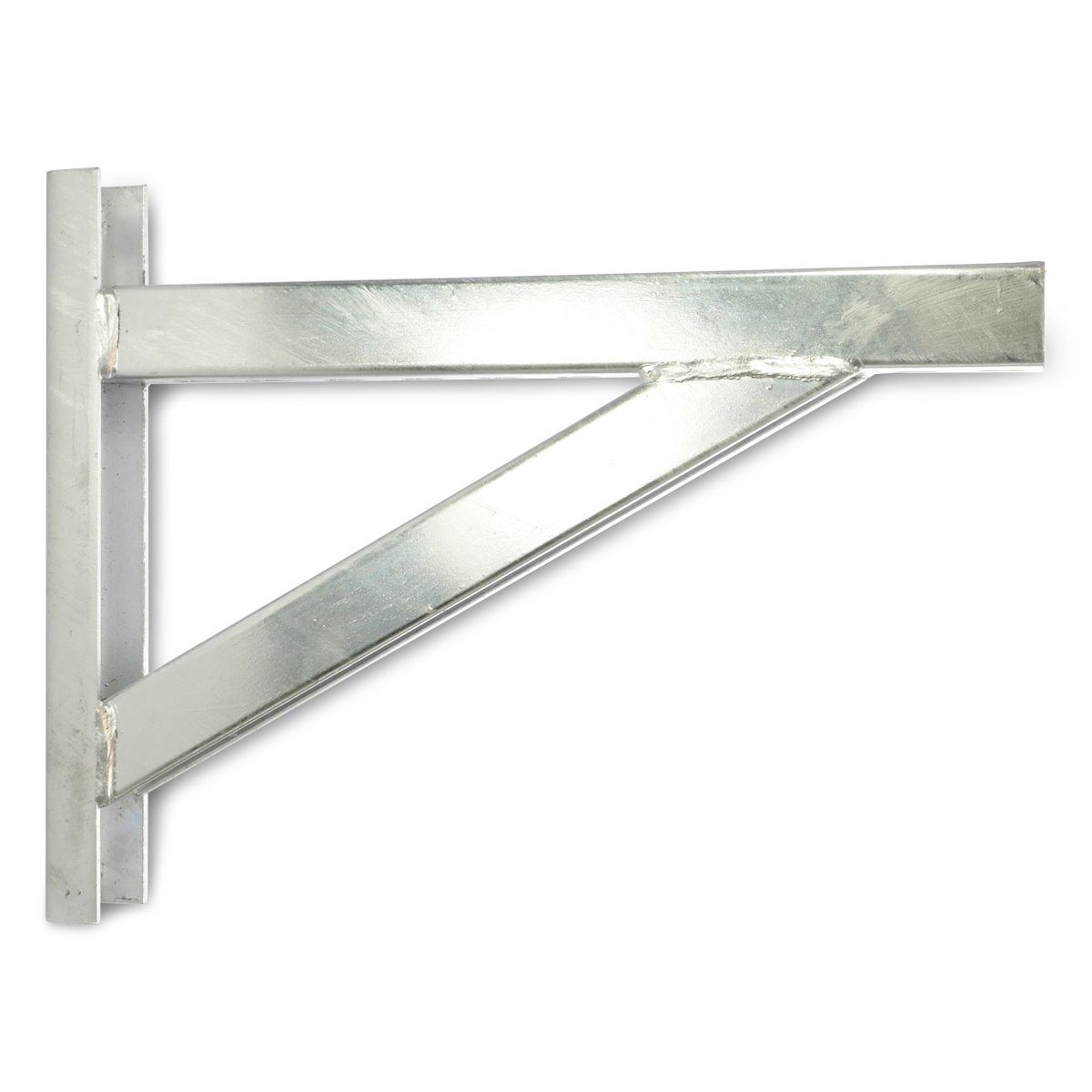

Dimensions: Profile: 41 x 41 x 2.5 [mm] Cantilever: 300 mm - 1,350 mm Rail slot: 18 mm Hole pattern: 13 x 20 [mm] at 40 mm intervals Backplate height: 281 - 877 mm Rail lip steel: fluted Rail lip stainless steel: smooth Matching screws: Hammerhead screws 41/21 Hammerhead fastener 41/41 Threaded plate 41/41 Threaded plate 41/41 with fixing aid Extensive range of mounting accessories. Other lengths, surfaces and hole patterns are available on request. Heavy-duty rail bracket for wall mounting - made in Germany. The tried-and-tested heavy-duty bracket in profile 41/41 with 2.5 mm wall thickness for particularly high requirements. The U-brace provides additional stability, the diagonal brace is mitred and welded flat, which enables loads of well over 300 kg, depending on the design. The profile rail of the galvanised mounting brackets is serrated on the rail lip, the stainless steel version is smooth (serrated on request) The hot-dip galvanised version of the support brackets is suitable for installation in damp rooms and outdoor areas. Easy to align thanks to two slotted holes in the base plate. All heavy-duty mounting brackets are also available in A4 stainless steel for special working environments. Often a mandatory material for many technical trades and buildings, such as bridge drains, sewage treatment plants, in chemical and pharmaceutical plant construction and in food processing plants. A4 stainless steel is also resistant to acid and seawater. Our heavy-duty supports are suitable for the professional construction of load-bearing structures, for example for pipework, ventilation ducts and cable trays, for bridge and building drainage or as supports for units and machine components. The serrated profile, in conjunction with the optionally available hammer-head bolts and threaded plates, ensures extremely secure connections. All BULLFIX support brackets are manufactured in Germany and, in direct comparison, represent an economically attractive alternative to cantilever brackets from other suppliers. Cantilever brackets from the W&uumlrth-Varfix heavy-duty bracket series, Walraven Strut wall brackets, Fischer cantilever arm FCAM,&nbsp and the Halfen KON 41/2 series can be used as comparison products. All BULLFIX brackets are manufactured in Germany. Suitable for our cantilever arms 41/41: hammerhead screws 41/22 Z, hammerhead fastener 41/41, threaded plate 41/41, threaded plate 41/41 with fixing aid. Further mounting accessories and pipe clamps can be found in the corresponding category. For individual requirements, we also offer other lengths, hole patterns and surfaces on request.
